README

ggrefine ggrefine website

CRAN status

The objective of ggrefine is to provide some pretty ggplot2 complete themes, and refine functions to tweak these easily based on the particulars of a plot.

Installation

Install from CRAN, or development version from GitHub.

install.packages("ggrefine")
pak::pak("davidhodge931/ggrefine")

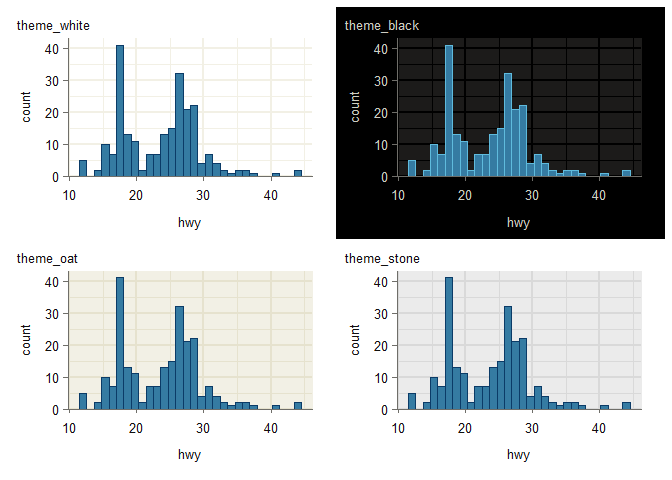

Theme

The themes are built to work with the refine functions - and can be customised easily.

The theme_grey function differs from the other two in that the panel_grid_colour by default is derived by applying a multiply blend on the panel_background_fill.

As the theme names are the same as those in ggplot2, it is recommended to not load the package, but instead refer to each theme as ggrefine::theme_*.

library(ggplot2)

p_base_light <- mpg |>
  ggplot(aes(x = hwy)) +
  geom_histogram(
    stat = "bin", shape = 21,
    colour = blends::multiply("#357BA2FF")
  ) +
  scale_y_continuous(expand = expansion(mult = c(0, 0.05)))

p_base_dark <- mpg |>
  ggplot(aes(x = hwy)) +
  geom_histogram(
    stat = "bin", shape = 21,
    colour = blends::screen("#357BA2FF")
  ) +
  scale_y_continuous(expand = expansion(mult = c(0, 0.05)))

p_light  <- p_base_light + ggrefine::theme_light() + labs(title = "ggrefine::theme_light")
p_dark  <- p_base_dark  + ggrefine::theme_dark() + labs(title = "ggrefine::theme_dark")
p_grey <- p_base_light + ggrefine::theme_grey() + labs(title = "ggrefine::theme_grey")
p_oat <- p_base_light + ggrefine::theme_grey(
  panel_background_fill = flexoki::flexoki$base["base50"],)  +
  labs(title = "ggrefine::theme_grey(panel_background_fill = ...)")

patchwork::wrap_plots(
  p_light,
  p_dark,
  p_grey,
  p_oat
)

Refine

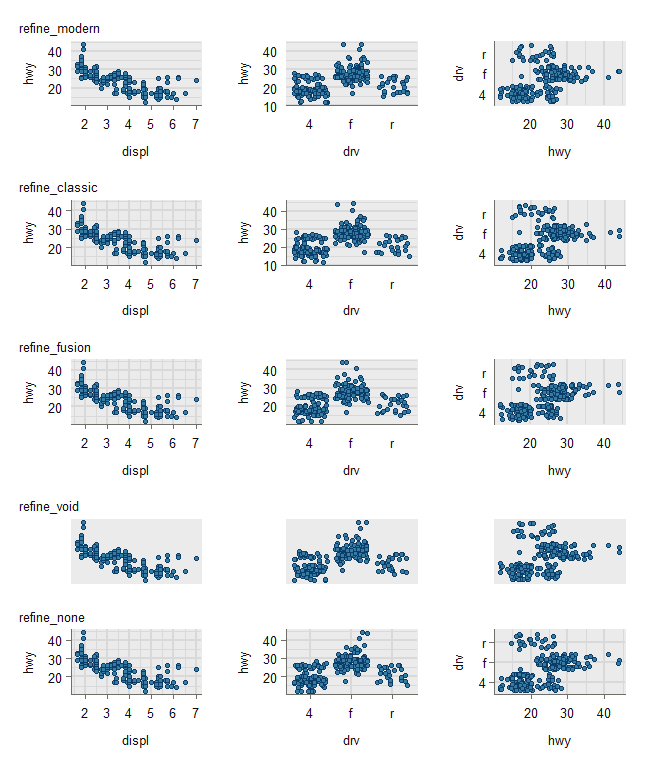

The ggrefine::refine_* functions adjust gridlines and axis elements based on axis types (x_type and y_type), which default to "continuous".

set_theme(new = ggrefine::theme_grey())

p_continuous <- mpg |>
  ggplot(aes(x = displ, y = hwy)) +
  geom_point(shape = 21, colour = blends::multiply("#357BA2FF"))

p_discrete_x <- mpg |>
  ggplot(aes(x = drv, y = hwy)) +
  geom_jitter(shape = 21, colour = blends::multiply("#357BA2FF"))

p_discrete_y <- mpg |>
  ggplot(aes(x = hwy, y = drv)) +
  geom_jitter(shape = 21, colour = blends::multiply("#357BA2FF"))

patchwork::wrap_plots(
  p_continuous + ggrefine::refine_modern() + labs(title = "ggrefine::refine_modern"),
  p_discrete_x + ggrefine::refine_modern(x_type = "discrete"),
  p_discrete_y + ggrefine::refine_modern(y_type = "discrete"),
  p_continuous + ggrefine::refine_classic() + labs(title = "ggrefine::refine_classic"),
  p_discrete_x + ggrefine::refine_classic(x_type = "discrete"),
  p_discrete_y + ggrefine::refine_classic(y_type = "discrete"),
  p_continuous + ggrefine::refine_fusion() + labs(title = "ggrefine::refine_fusion"),
  p_discrete_x + ggrefine::refine_fusion(x_type = "discrete"),
  p_discrete_y + ggrefine::refine_fusion(y_type = "discrete"),
  p_continuous + ggrefine::refine_void() + labs(title = "ggrefine::refine_void"),
  p_discrete_x + ggrefine::refine_void(x_type = "discrete"),
  p_discrete_y + ggrefine::refine_void(y_type = "discrete"),
  p_continuous + ggrefine::refine_none() + labs(title = "ggrefine::refine_none"),
  p_discrete_x + ggrefine::refine_none(x_type = "discrete"),
  p_discrete_y + ggrefine::refine_none(y_type = "discrete"),
  ncol = 3
)
